CNC wire cut EDM machine KD800WL is designed for large jobs cutting. It has Kingred's own designed separated machine bed for heavy-duty loading, and the lasted developed PLC controlled system running at the latest Windows platform. +-30° big angle cutting system with pitch compensation to realize high accuracy big angle cutting. Roller linear guideway for heavy load with good accuracy. Y axis could be customized made in the range of 1000-2600mm.
Main Dimensions of KD800W CNC Wire Cut EDM Machine
X×Y×Z travel: 630×800×500mm;
Working table dimension: 780×1010mm;
Max cut taper: ±30°/80mm or ±6°/80mm;
Weight of the machine: 6000kg;
Load of the table: 1000kg;
Wire drum type: moving.
KD800W CNC Wire Cut EDM Machine Specifications
Name | KD800W |
X×Y×Z | 630×800×500mm |
Working table dimension | 780×1010mm |
Max cut angle/thickness | ±6°/80mm or ±30°/80mm |
Max load of the working table | 1000kg |
Surface finish | Ra≤1.0-2.5μm(multiple and single paths cutting) |
Max cutting speed | ≥200mm2/min |
Cut accuracy | ≤±0.006mm, straight cutting |
≤±0.015mm, angle cutting |
Min drive unit | 0.001mm |
The diameter of the electrode wire | Φ0.12-Φ0.20mm |
Weight of machine | 6000kg |
Dimension of machine | 2700×1800×2300mm |
Max cutting current | ≥7A |
Power supply | 3 phase 380V/50Hz |
High-frequency width (continuously adjustable) | 1-99μs |
Rated power | ≤3KVA |
Working tank |
Capacity of tank | 60L |
Filtration | Changeable filter(0.005mm) |
Dimension of tank | 670×460×610mm |
Weight of tank | 60kg |

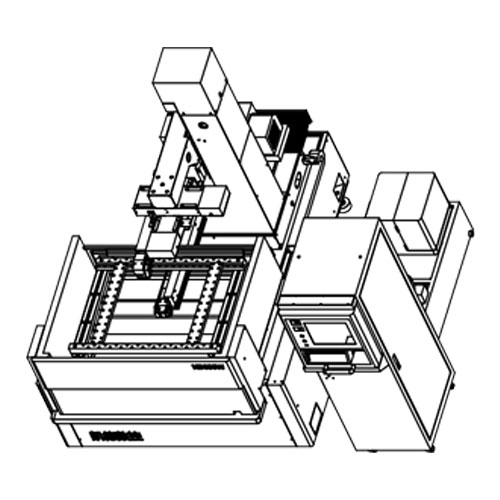

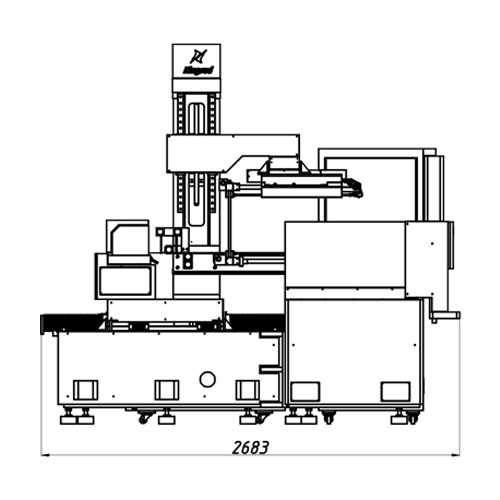

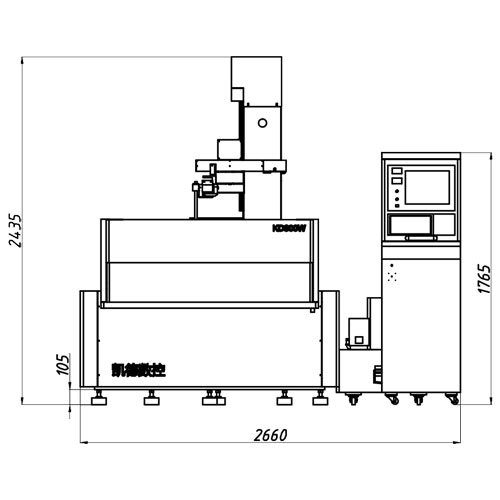

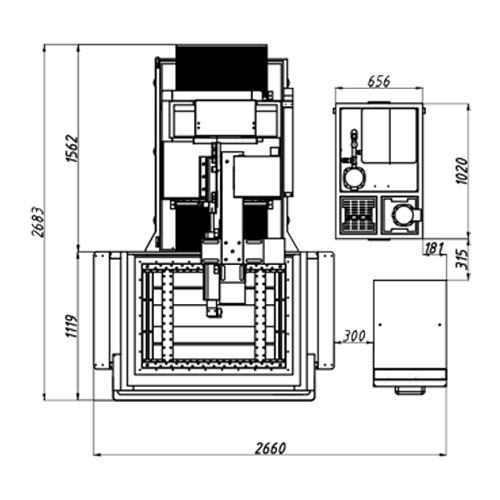

Outline Drawing
