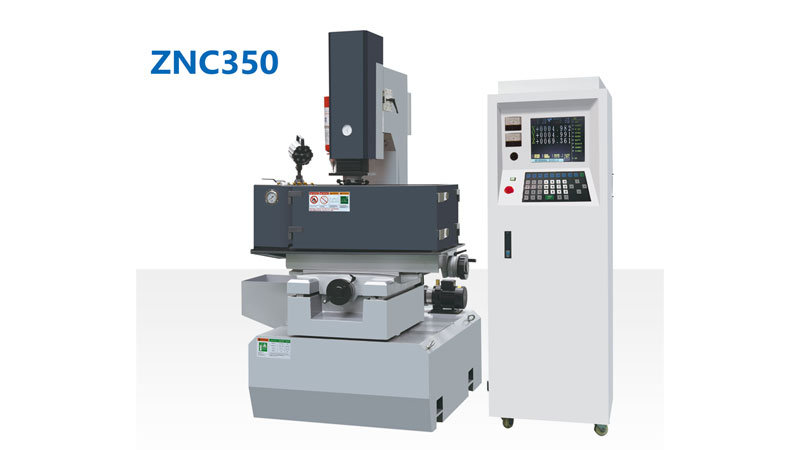

ZNC350 ZNC Spark Erosion Machine

Name: ZNC350 ZNC Spark Erosion Machine
Brand: Beijing Dimon CNC Technology Co., Ltd.

ZNC die sinking EDM has X and Y axis manual control and Z axis program control, with handwheel of X and Y axis, it is fast and convenient to locate position for spark discharge machining. Due to affordable cost and good performance, ZNC EDM machine is widely used in producing various plastic injection molds, such as home applications, electronic connectors, powder metallurgy, automotive molds, and other industries.

Main Dimensions of ZNC350 ZNC Spark Erosion Machine

X×Y×Z travel: 350×250×200mm;

Working table dimension: 600×320mm;

Working tank on the table: 850×570×350mm

ZNC350 ZNC Spark Erosion Machine Specifications

Items	unit	ZNC350
The oil load capacity of the table	mm	850×570×350
Table size	mm	600×320
Travel of X/Y/Z	mm	350×250×200
2nd Z axis travel	mm	200
Distance from spindle end to the table	mm	150-550
Oil tank dimension	mm	1000×1300×455
Max load of electrode weight	Kg	50
Load of table	Kg	50
Dimension of machine	mm	1650×1400×2100
Net weight of the machine	Kg	1050

Outline Drawing

znc350 znc spark erosion machine layout 3
